PRATT DROP FRAME DC432LS9
Advanced Engineering, Latest Manufacturing Techniques
Pratt builds lightweight, high strength chassis, which are technically and innovatively engineered. They have been building trailers for over 30 years. Over these years, they are constantly improving their Standard models and are simultaneously developing new innovative models.
TO REQUEST MORE INFORMATION

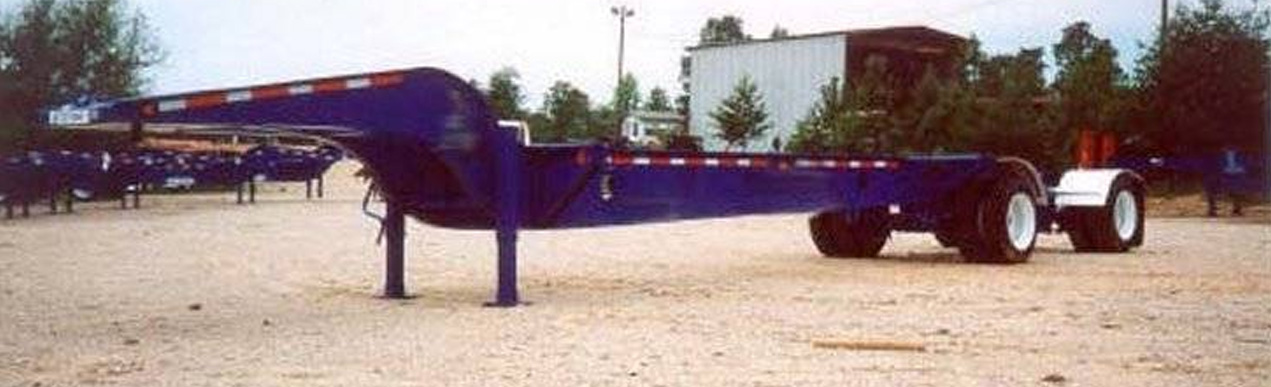

Trailers: Drop Frame DC432LS9
LIGHTWEIGHT SPREAD-AXLE SPRING SUSPENSION
Est. Tare Wt.7,218 lbs (±3%)
Features
- 96" Wide
- Continuous Beams and Welds
- Lightweight Design
Equipped to Handle
- (1) 20FT ISO Tank Container
Options
- Also offered in Tri-Axle and Air-Ride, Tandem Configuration
- Fenders
- 102" Wide
Dimensions
- Nominal Length: 43’
- Nominal Width: 96"
- King Pin Location: 16"
- Rear Axle Location: 23 1/8" (REAR OF CHASSIS)
- Fifth WHeel Height: 48"
- Rear Deck Height: 44"
- Landing Gear Location: 115"
- Axle Spread: 109" (Tandem Widespread)
- Tare Weight:
- Base Unit only: 7,218 lbs (±3%)
- w. Rear Fenders: 7,340 lbs (±3%)
- Gross Vehicle Weight Rating: 68,000 lbs
- Frame Rating: 80,000 lbs
Material
Main Rails are of high strength 80,000 PSI, all others are of ASTM A572 Grade 50.
Main Rails
Fabricated Continuous I-Beam with ½ x 4" top and bottom flanges.
Crossmembers
Fabricated I-Beam Construction
King Pin
1/4" pick up plate with 2" diameter king pin.
Landing Gear
Two-Speed gears, 19" Travel w/cushion foot.
Twistlocks
4 AAR Approved Non-Retractable Twistlock.
Suspension
Hutch 9700 Tandem Wide-Spread W/Under Mount Hangers, Underslung 3-leaf Spring.
Axles
77 ½" Track w/medium cams, 5" Round, 22,500 lbs each rated.
Hub & Drums
10 Hole Steel Hub and Cast Drums.
Brakes
16 ½" x 7" quick-change brakes with non-asbestos lining.
Rims
10 Hole Steel Disc Wheel.
Tires
(8) 255/70R22.5 Low Pro Radials, 16 ply tires.
Brake System
Valve system for service and emergency brakes. 2S/1M ABS system.
Electrical
12 VOLT w/modular wiring and plug type connectors and 7-way pin electrical plug for ABS system. Sealed wire Harnesses. Sealed grommets and lights.
Paint
Enamel Champion Blue.
Misc
Conspicuity Striping, Reflectors, Rubber Bumpers, 24x30 Pratt Mud Flaps
Options Incl.
PVC Fender, Rear Walkway Assembly.
